…...................…………........--- High Bridge Part 4 ---

=========================================

Continuing on with the ‘High Bridge’ design, printing and assembly.

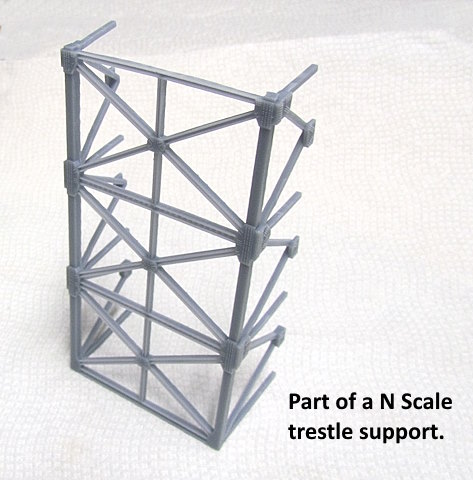

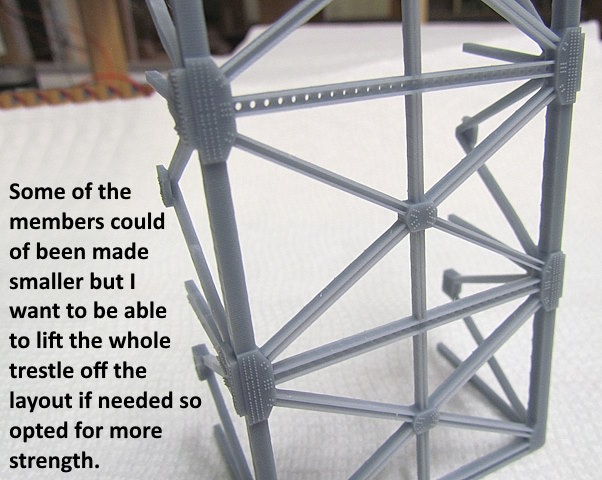

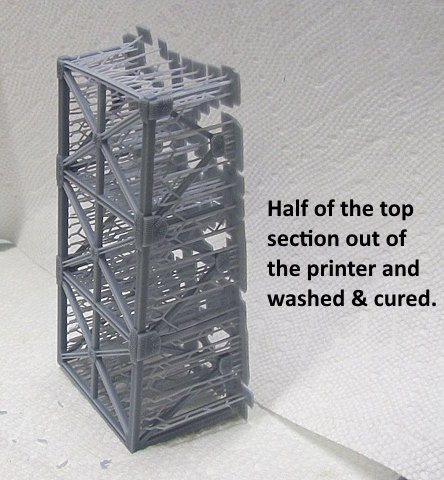

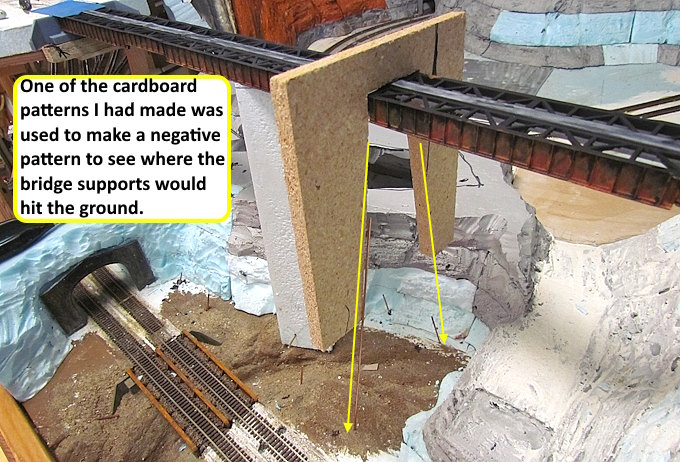

The pattern above was first made out of cardboard but it was to flimsy and didn’t give a good indication of where the support’s legs were going to hit the ground. Using the heavier particle-board proved to be a better option since it has some mass to it.

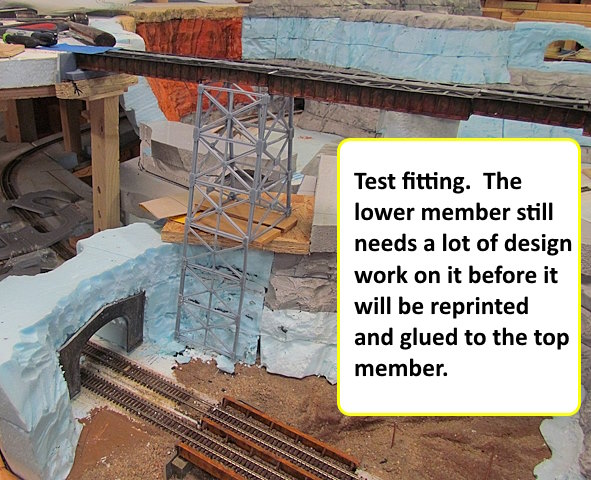

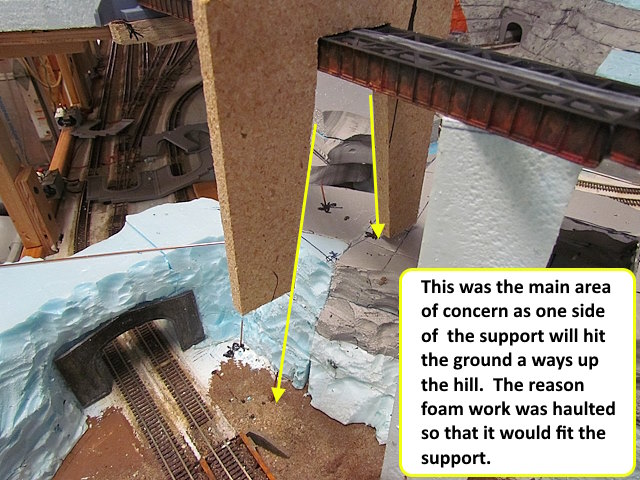

Part of the support that will go here (above) will hit the ground near the tracks. The other side will hit the hill further up and there will be supports that will also go into the hill.

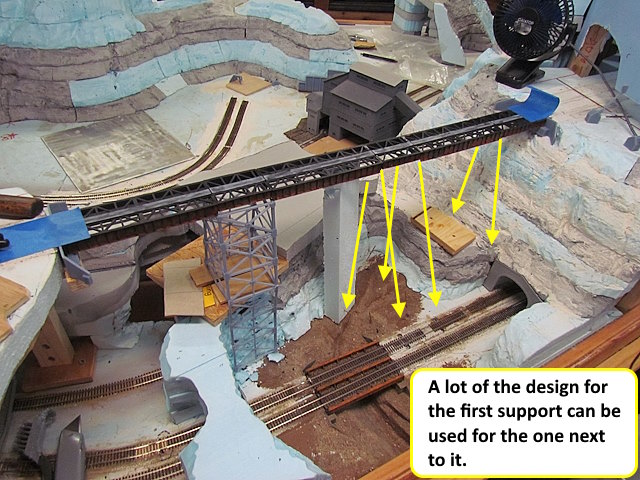

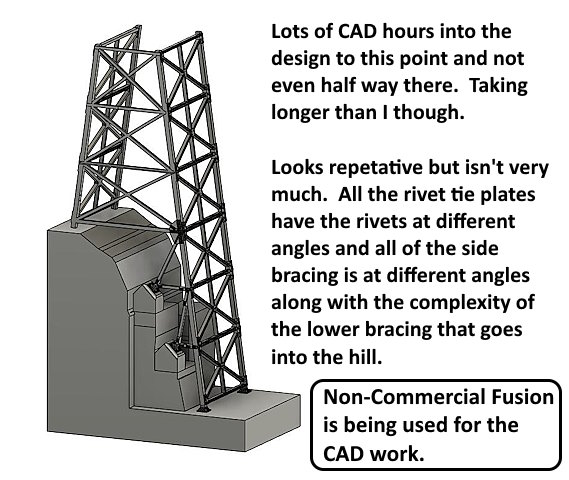

I knew that the design work wasn’t going to be finished in a day but has taken a lot longer than anticipated even though Fusion is a huge help in making this project doable..

.

.

.

.

More CAD work coming…....

A link to this whole build ( HERE ).

=========================================
