…………......--- Sawmill 20 Deg. Crossing -- Pt. 2 ---======================================

Finishing the crossing ....

.

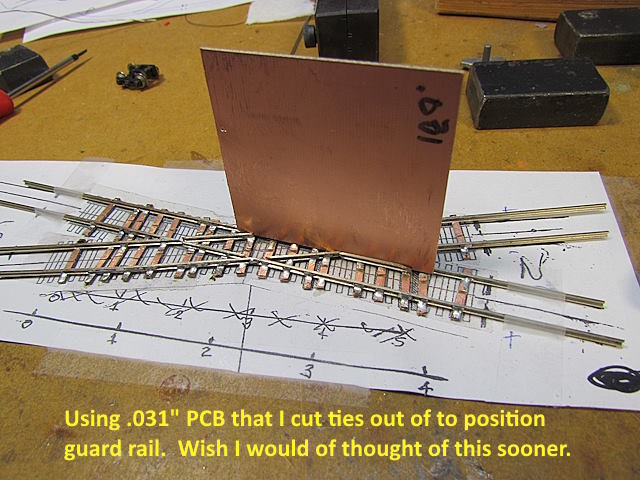

Wish I would of come up with using the PCB above to locate the guard rails for soldering. Seems to work very well and used it on all the guard rails of the crossing.

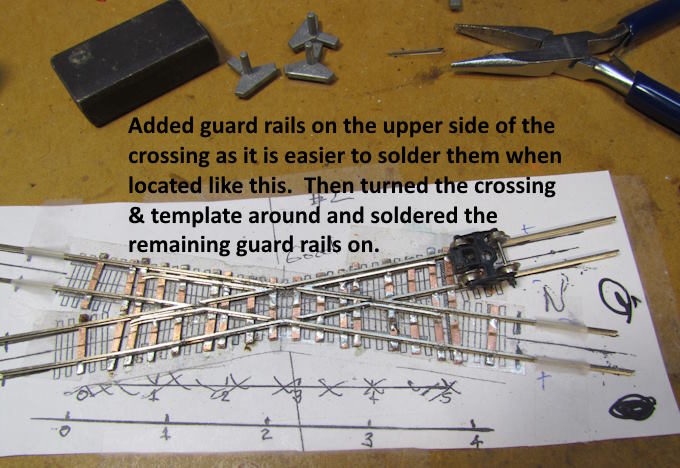

It was easier to solder the upper set of guard rails that were away from me and then turn the template/crossing 180 degrees and solder the other ones in.

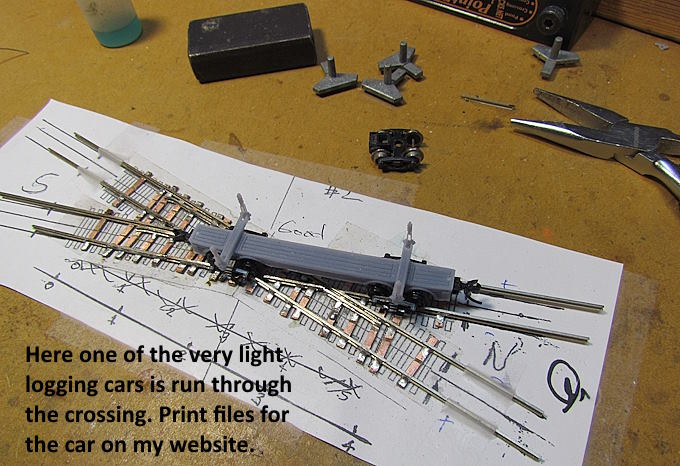

The log car above (print files here down the page aways) is very light and proved to be a good test car for the crossing.

.

.

.

.

.

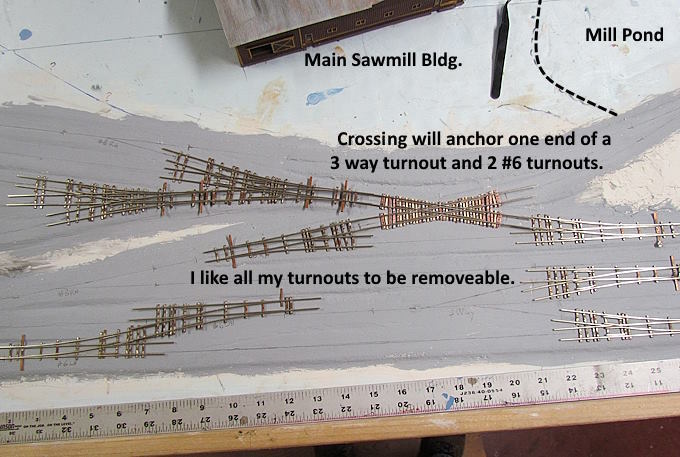

Will move on to the other turnouts still needed for this area next.

To be continued and a link to this whole build ( HERE ).

=========================================
